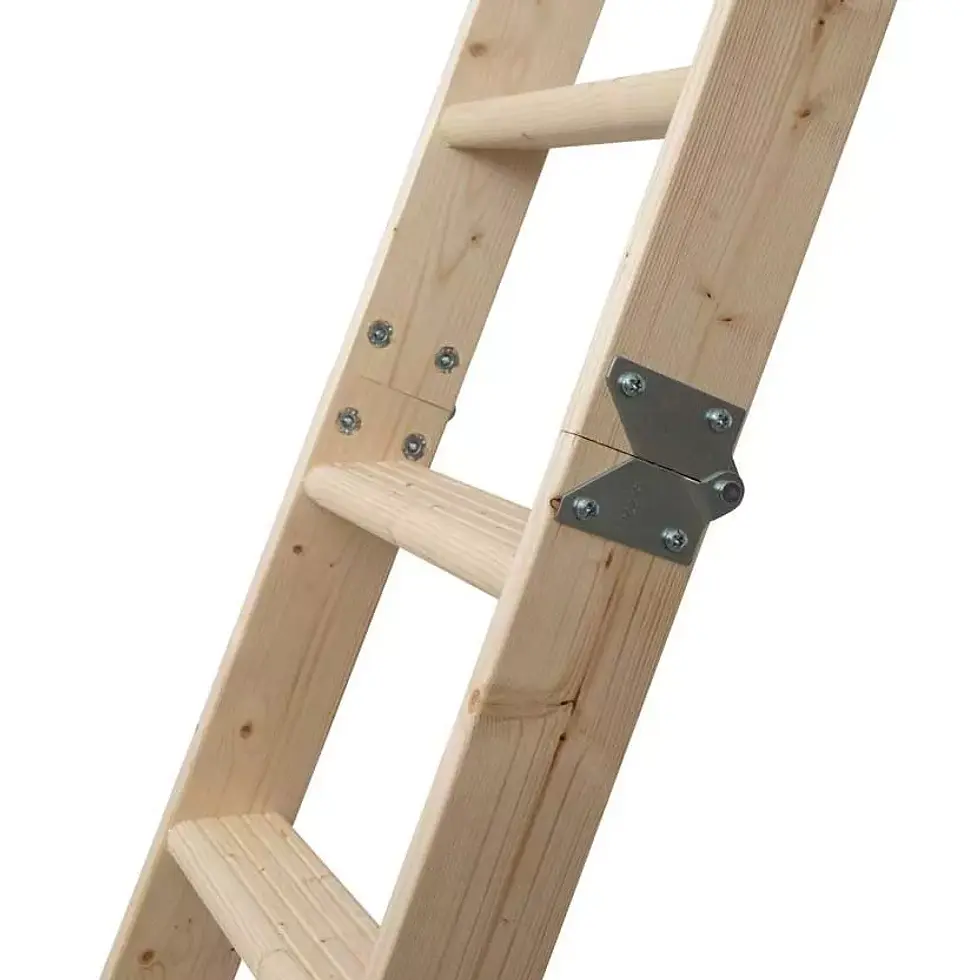

The Dolle 1044544-144 SW40 Wooden Attic Ladder is a fully assembled complete attic access solution and ready for quick and easily installation to access to your attic space. The attic ladder stores within the trapdoor so no attic floor space is required. Available in 3 different casting sizes, this attic ladder kit has a 40mm thick insulated white trapdoor and rubber draught excluder to prevent loss of heat and draughts. Suitable for heights up to 2.86m, with excellent insulation properties the attic ladder has a component U-value of 1.16 W / m²K.
Features
Solid spruce wooden ladder
Rubber draught excluder
Handrail to aid safe climbing
Slip-resistant treads and feet
Available in three different casting sizes 115 x 55cm, 120 x 60cm & 120 x 70cm
40mm thick white-white faced trapdoor with 34mm insulating to reduces heat loss
U-value 1.16W/m2*K
Requires no arc space for clearance or storage space in the attic
Includes timber stowing pole
Optional spring clip to secure sections when deployed
Optional attic Ladder Extension Kit available to increase height to 3.33m
Tested to a huge 265kg working load
150kg load capacity
Air-tight class 4 in accordance with DIN EN 12207
Produced according to DIN EN 14975
Downloads
Dolle SW40 Wooden Attic Ladder Mounting Instructions
Dolle 1044544-144 SW40 Wooden Attic Ladder Dimensions
Notes
Load includes user, tools, materials, etc.
Guarantee against manufacture defects in workmanship or materials
Specifications
Unique Selling Point
Fully Assembled
Code
1044544-100
Size
2.86m
Style
3 Section
Number of Treads
12
Material
Wood
Performance
Domestic
Certifications
EN 14975
Handrail Included
Yes
Handrail Material
Steel
Operating Pole Included
Yes
Operating Pole Material
Wood
Separate Foot Attachment
Yes
Foot Material
Plastic
Door Included
Yes
Number of People for Installation
2
Max. Load (kg)
150 kg (23st 9lb)
Guarantee
10 Year
Dimensions
Floor To Ceiling Height (m)
2.86m
Approx. Product Weight (kg)
25.0kg
Opening Size (LxW) (m)
1.15m x 0.55m
Casing Height (m)
0.14m
Casing Length (m)
1.13m
Casing Width (m)
0.54m
Opening Arc (m)
1.58m
Ladder Width (m)
0.37m
Tread Width (m)
0.35m
Trapdoor Insulation Thickness (mm)
40mm
