The UTS 500 Industrial Towers are designed for safety and ease of use, there are no tools required and the provided manual is easy to follow ensuring a quick and simple construction. The UTS12102 UTS 500 Industrial Tower system has single 0.85 m frame width that is 2.50 m in platform length and platform heights from 10.20 m. Flexible enough to be used both indoors & outdoors and is compatible with the BoSS range.
Features
- Fully certified to the very latest BSI (British Standards Institute) Kitemark (KM617169) in respect to BSEN1004-1:2020 CLASS 3 8/12 XXXD
- Conforms to the requirements of the 3T erection and dismantling method
- Available in 23 working heights for each of the 4 different Widths and Lengths, from 1.2 - 12.2 m (platform height) in 0.5 m increments
- Weight rating 950 kg less tower self weight
- Frame Sections available in 850 mm and 1450 mm widths and 1.0 m, 1.5 m and 2.0 m Heights• Fully welded Ladder incorporated into frame
- Fitted with Dual locking castors individually certified to 700 kg. Tower base plates are available as an alternative
- Platform are available in 2 different lengths – 1.8 m and 2.5 m with a non slip finish for additional safety, damage resistant claws, and an automatic self closing trapdoor. Complete with Wind-lock device. Weight rating of 275 kg
- Platform can be set at increments of 0.5 m ensuring maximum flexibility to work at a variety of heights
- Colour coded hooks with an over-sized trigger for easier operation
- Articulated swivel rubber feet to outriggers and over-sized cast aluminium fixings for ease of attachment
- Floating spigots for ease of assembly and dismantling
- All components come with a 5 year manufacturer’s warranty against defects
- Manual also available through QR code printed on all frames and platforms
Package Contents
| PART NUMBER | QUANTITY | DESCRIPTION |
|---|---|---|
| DLC | 4 | Castor 150mm (6 inch) |
| ALU | 4 | Adjustable Leg |
| 2RSWLF | 1 | Ladder Frame 2 Rung 1m (H) x 0.85m (W) |
| 2RSWSF | 1 | Span Frame 2 Rung 1m (H) x 0.85m (W) |
| 4RSWLF | 5 | Ladder Frame 4 Rung 2m (H) x 0.85m (W) |
| 4RSWSF | 5 | Span Frame 4 Rung 2m (H) x 0.85m (W) |
| HD25 | 5 | Trapdoor Deck 2.5m (L) |
| HB25 | 22 | Horizontal Brace 2.5m (L) |
| DB27 | 19 | Diagonal Brace 2.7m (L) |
| TB25 | 2 | Side Toe Board 2.5m (L) |
| TB06 | 2 | End Toe Board 0.6m (L) |
| RTBC | 4 | Toe Board Clip |
| LTSU | 4 | S2 Telescopic Stabiliser |
Specifications
| FEATURE | SIZE / DETAILS |
|---|---|
| Tower Width (m) | 0.85 m |
| Total Length (m) | 2.5 m |
| Platform Length (m) | 2.5 m |
| Platform Width (m) | 0.6 m |
| Platform Height (m) | 10.2 m |
| Max. Safe Working Load per Platform (kg) | 275 kg |
| Safe Working Height (m) | 12.2 m |
| Total Tower Height (m) | 11.2 m |
| Load Capacity (kg) | 950 kg |
| Certifications | EN 1004:2020 |
| Style | Ladderspan 3T |
| Tower Style | 3T |
| Material | Aluminium |
| Approx. Product Weight (kg) | 330.9 kg |
Notes
- Safe Working Height based on a 2m height and reach of a person whilst standing on the highest level platform.
Downloads

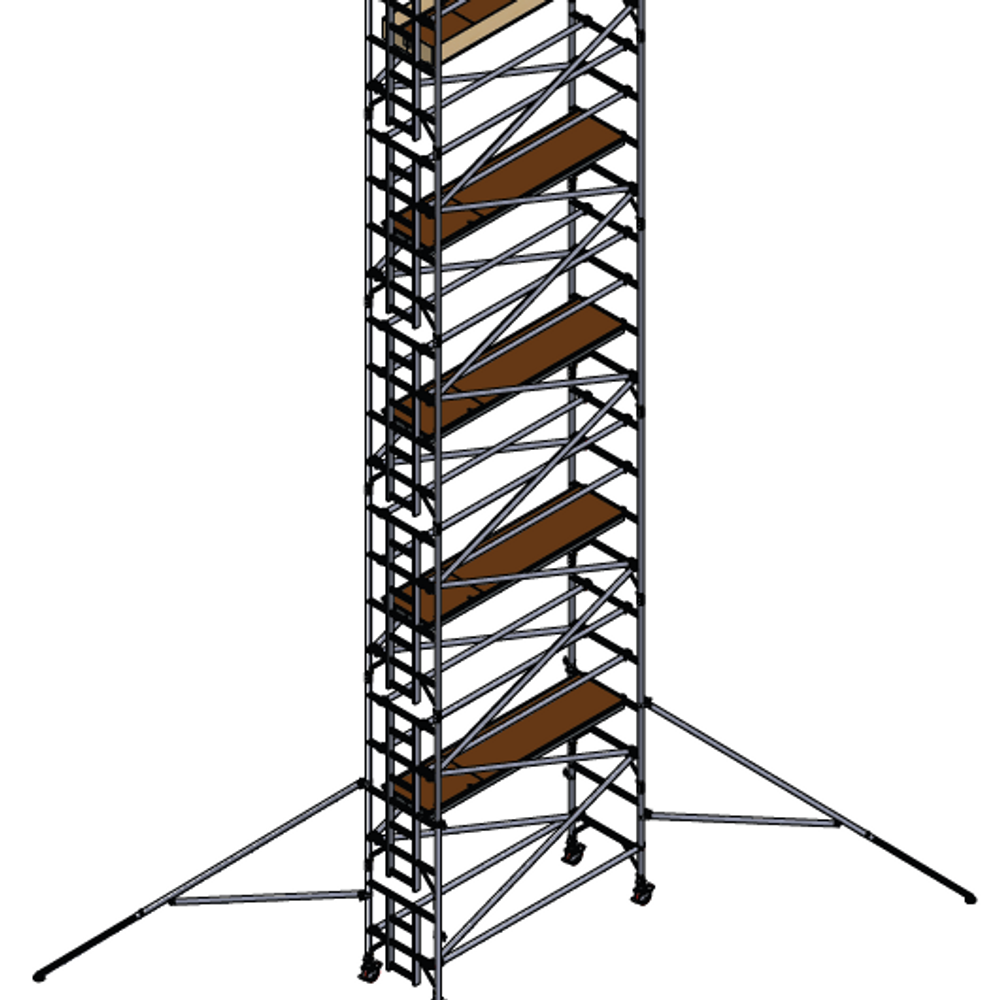

UTS 500 INDUSTRIAL 3T 0.85M (W) X 2.5M (L) 10.2M PLATFORM HEIGHT
€5,703.25Price
Excluding Tax
